HPO – POTS 機能のテストの為のハードウエアインターフェイス
HPO は IPベースのホームゲートウエイ、DSL 及びケーブルモデム等のデバイスに搭載されている POTS インターフェイス機能をテストする為の、POTS (Plain...
HPO は IPベースのホームゲートウエイ、DSL 及びケーブルモデム等のデバイスに搭載されている POTS インターフェイス機能をテストする為の、POTS (Plain Old Telephone System) をシミュレーションする軽量かつコンパクトなハードウエアです。 テレコム及び USB インターフェイス、アナログネットワークへの校正されたアクセス、そしてオンフック・オフフックコントロールが備わっています。
HPO は IPベースのホームゲートウエイ、DSL 及びケーブルモデム等のデバイスに搭載されている POTS インターフェイス機能をテストする為の、POTS (Plain Old Telephone System) をシミュレーションする軽量かつコンパクトなハードウエアです。 テレコム及び USB インターフェイス、アナログネットワークへの校正されたアクセス、そしてオンフック・オフフックコントロールが備わっています。
Features
- HPO serves as the interface between arbitrary analog extension lines or local loops and labCORE to allow measurements.
- The hardware interface transfers the signal coming from the extension line to the hardware platform labCORE and sends signals received from labCORE via the a/b line to the remote station.
- HPO comes with a RJ11 socket (as used by telephones) for easy connection to a TAE socket with a standard adapter cable.
- It allows termination with various integrated impedances and external impedances.
- The integrated holding circuit enables the remote station to recognize whether a call is arriving or established.

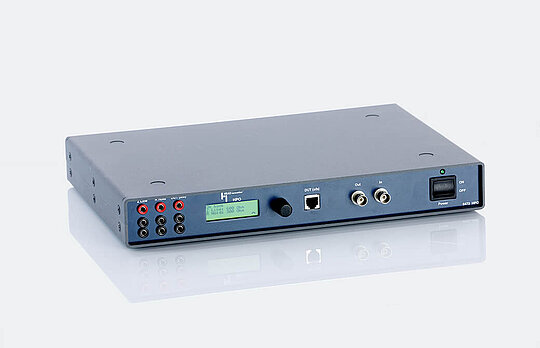

- HPO is controlled by the measurement and analysis software ACQUA (set resistance, on hook, off hook etc.) or via display (LCD menu) and rotary push knob.
- The hardware interface has a switchable loopback mode to test the setup.
- A ring detection signals an incoming call in the display of the hardware interface. ACQUA can set the device to a trigger mode so that HPO automatically accepts an incoming call.

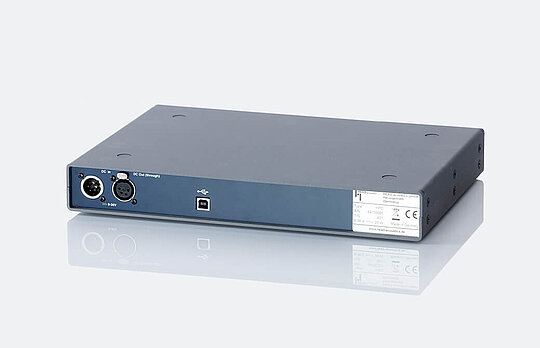

- The hardware interface connects to the PC via USB.
